Hinges-pivots

GROOM : GRP100

GRP100

Shallow double action floor spring for doors up to 100 kg

  • advantages products
  • Extra flat floor reservation: 40 mm high sealed casing

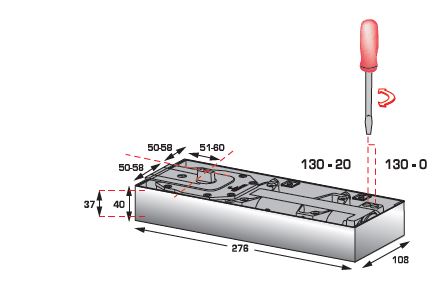

  • Three dimensional adjustments in the sealed casing
  • Continuous and sustainable adjustments due to its thermostable technology
  • Very hish resistance to corrosion: Grade 4

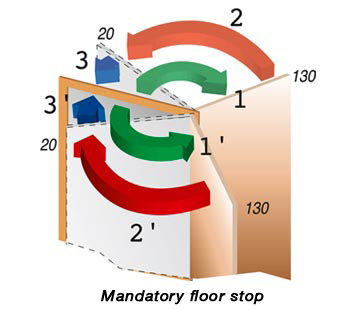

  • Zone 1 and 1’ : Door opening on a 130° range; if door allows it, regardless direction of passage. Closing energy restored in spring.

Hold open The door is blocked at 90° and cannot be opened without a deliberate manual action.

  • Zone 2 and 2’ : Reclosing controlled over all this zone (130° to 20°). Closing speed adjustable by using grub screw.

Hold open The door is blocked at 90° and cannot be opened without a deliberate manual action.

  • Zone 3 and 3’ : Latching action adjustable by grub screw 20 to 0°.
