Door closers

GROOM : GR200

GR200

Ideal for any type of external support thanks to its backcheck function

  • advantages products
  • Latching and closing speed adjustable by grub screw on front
  • Adjustable backcheck by grub screw
  • Relief valve as a standard
  • Opening range up to 180° on hinged side
  • Invisible fixings hidden by its clipped cover
  • Fitting on any type of support (wood, aluminum, PVC)
  • Sustainable and continuous adjustments thanks to its thermostable technology
  • Optional multiple fittings
  • 5 years warranty

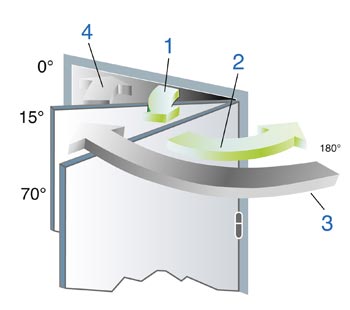

  • Zone 1:    Regular opening of the door up to 70°
  • Zone 2:    Adjustable backcheck 70° - 180°
  • Zone 3: Adjustable closing speed 180° - 15°
  • Zone 4: Adjustable latching 15° - 0°

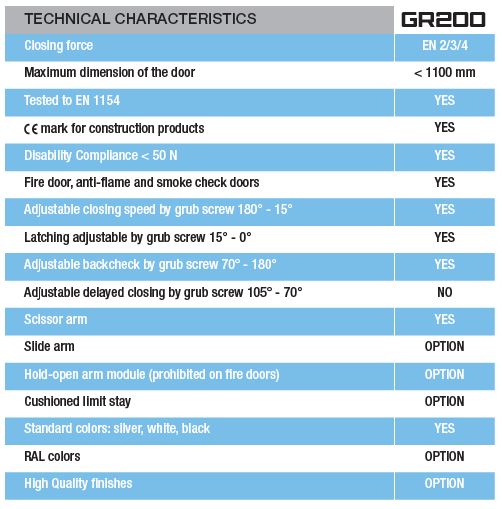

GROOM door closer GR200, with symmetrical rack and pinion technology and slide arm, compliance with EN 1154, CE mark, disability compliance < 50 N.

  • Force EN 2, 3 and 4 for doors up to 1100 mm width and / or 80 kg with an opening angle up to 180°.
  • Closing speed and latching adjustments by grub screw on front and hidden under the cover plate.
  • Adjustable backcheck by grub screw on front hidden under the cover plate.
  • Invisible body fixings hidden by its clipped cover.

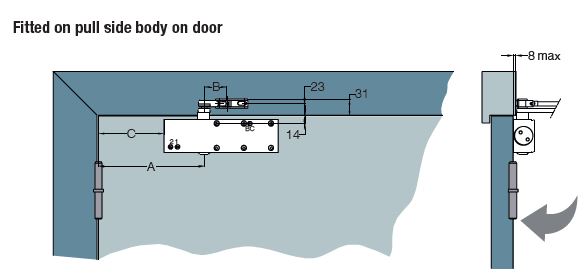

  • Pull or push side installation. Reversible, non-handed.
  • Thermostable hydraulic from -20° to +40°, equipped with pressure relief valves.
  • Silver, white, black, RAL finishes.

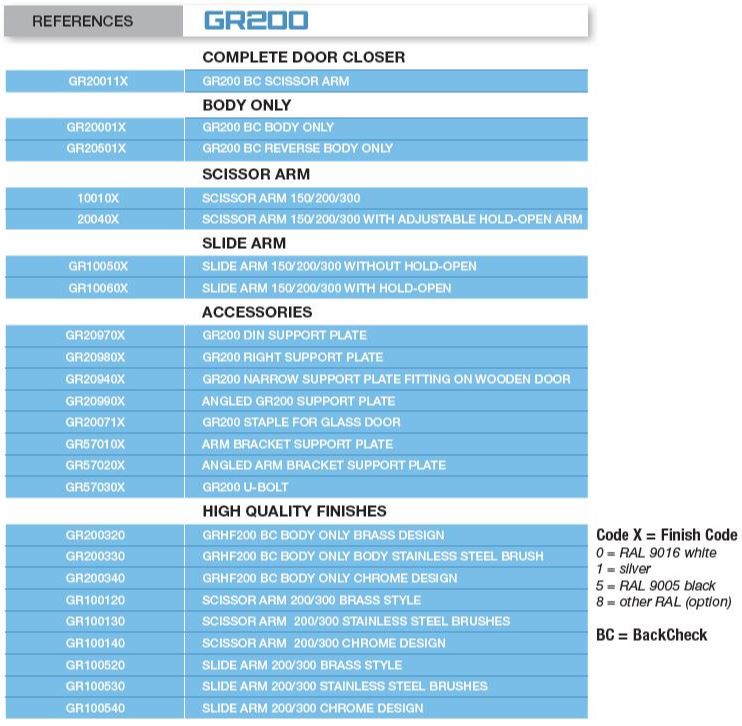

  • Accessories: DIN mounting plate for metal profile mounting, staple and U-bolt for mounting on glass body or frame, hold-open arm module, cushioned limit stay.
