Linear safety equipement

GROOM : GR500 FS

GR500 FS

Electromagnetic free-swing door closer with slide arm

  • advantages products
  • No effort required in opening and closing the door: «Free door»
  • Free swing function from a door opening angle > 0°
  • Automatic closing of the door leaf upon activation of the fire alarm: then it performs like a normal door closer
  • No local reset required: ease of use
  • Power supply in 24/48 Vcc with automatic slection
  • Low power consumption
  • Force 2 to 5 adjustable by jack
  • Opening angle up to 180° on pull side
  • Invisible fixings and adjustable screws hidden in its cover
  • Aesthetic, arm without any visible fixing
  • Adaptable to our SLV V2 selector strip for two-door door units equipped with a GR500 FS on the service leaf and a GR400 or GR500 on the semi-fixed
  • Fitting on any type of support (wood, aluminum, PVC)
  • Sustainable and continuous adjustments thanks to its thermostable technology

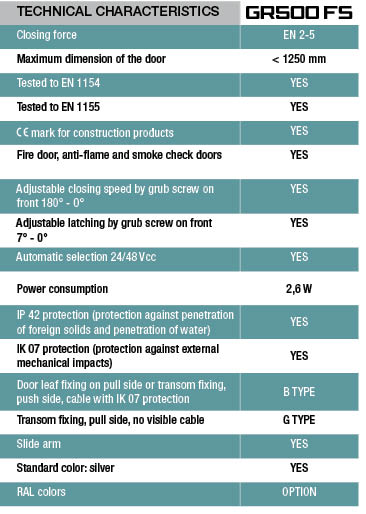

Smart free swing door closer GROOM GR500 FS, slide arm, compliance with EN 1154 and EN 1155, CE mark, disability compliance < 50 N in disengaged mode.

  • G type fixing with automatic voltage selection 24/48Vcc integrated into the door closer, without visible cable.
  • No effort required in opening and closing the door: «Free door» from an opening angle > 0°
  • No local reset required
  • Automatic closing of the leaf by order of the fire station allowing to ensure firestopping.
  • Adjustable force 2 to 5 using jack for doors up to 1250 mm width and / or 100 kg with an opening angle up to 180°.
  • Closing speed and latching adjustments by grub screw on front and hidden under the cover plate. Invisible body and arm fixings.

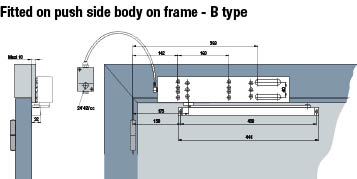

  • Door leaf or fixing pull side or transom fixing, push side.
  • Reversible, non-handed.
  • Power supply from fire station in 24/48 Vcc with automatic selection.
  • Thermostable hydraulic from -20° to +40°.
  • Door closer equipped with pressure relief valves.
  • Silver, RAL finishes.

Compliance with NFS 61937-2, PV DAS approved with most technical door manufacturers
