Door closers

GROOM : GR450

GR450

Perfect solution for healthcare facilities, thanks to its delayed closing

  • advantages products
  • Adjustable delayed closing by grub screw on front: perfect for healthcare facilities
  • High opening flexibility thanks to its asymmetric pinion technology
  • Latching and closing speed adjustable by grub screw on front
  • Adjustable backcheck by grub screw on front
  • Relief valve as a standard
  • Opening range up to 180° on hinged side
  • Invisible fixings hidden by its clipped cover
  • Aesthetic, arm without any visible fixing
  • Fitting on any type of support (wood, aluminum, PVC)
  • Sustainable and continuous adjustments thanks to its thermostable technology
  • Optional multiple fittings
  • 5 years warranty

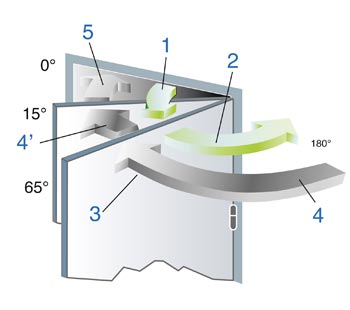

  • Zone 1: Regular opening of the door up to 65°
  • Zone 2: Adjustable backcheck 65° - 180°
  • Zone 3: Adjustable delayed closing 105° - 70°
  • Zone 4 et 4’: Adjustable closing speed 180° - 15°
  • Zone 5: Adjustable latching 15° - 0°

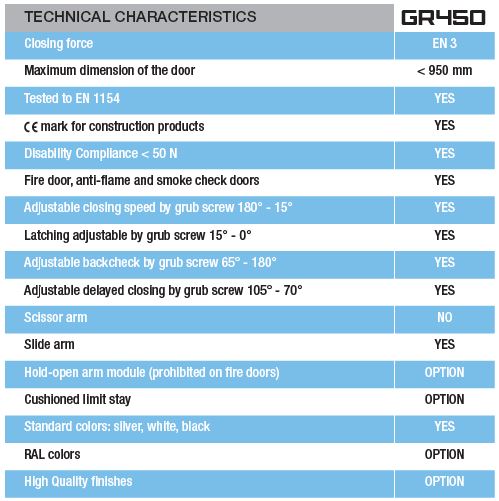

GROOM door closer GR450, with symmetrical rack and pinion technology and slide arm, compliance with EN 1154, CE mark, disability compliance < 50 N.

  • Force EN 3 for doors up to 950 mm width and / or 60 kg with an opening angle up to 180°.
  • Closing speed and latching adjustments by grub screw on front and hidden under the cover plate.
  • Adjustable backcheck by grub screw on front hidden under the cover plate.
  • Adjustable delayed closing by grub screw on front hidden under the cover plate.
  • Invisible body fixings hidden by its clipped cover.

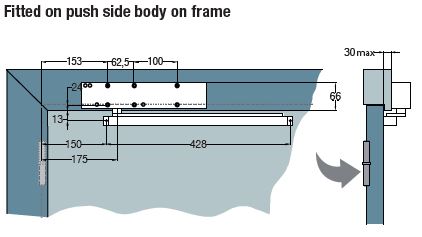

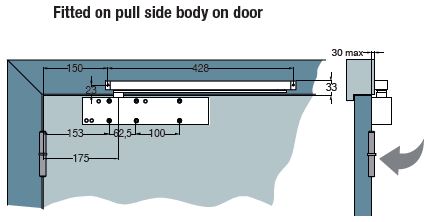

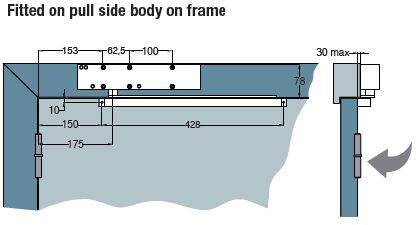

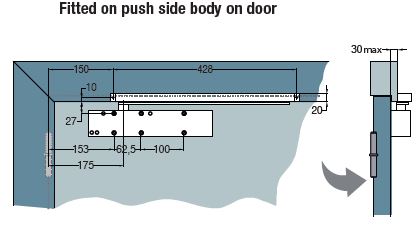

  • Pull or push side installation. Reversible, non-handed.
  • Thermostable hydraulic from -20° to +40°, equipped with pressure relief valves.
  • Silver, white, black, RAL finishes, high quality finishes.

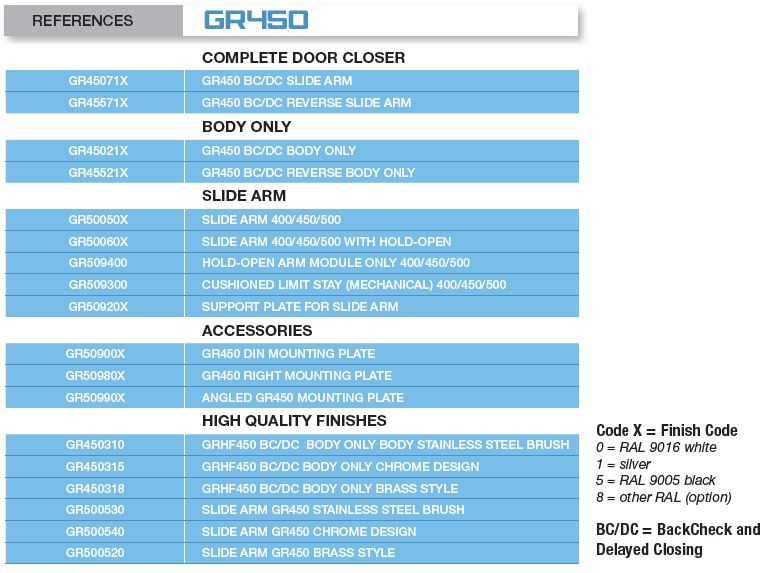

  • Accessories: DIN mounting plate for metal profile mounting, hold-open arm module, cushioned limit stay.
