Door closers

GROOM : GR150

GR150

The most compact door-closer for all types of doors weighing up to 80kg

  • advantages products
  • Reduced size: Height: 44 mm, Thickness 40 mm
  • C to C length of 16 mm that enables direct mounting on metallic profiles with no need for DIN metallic plates
  • Latching and closing speed adjustable by grub screw
  • Relief valve as a standard
  • Opening range up to 180° on hinged side
  • Invisible fixings hidden by its clipped cover
  • Fitting on any type of support (wood, aluminum, PVC)
  • Sustainable and continuous adjustments thanks to its thermostable technology
  • Optional multiple fittings
  • 5 years warranty

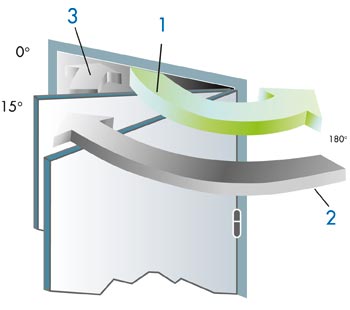

  • Zone 1: Regular Opening of the door up to 180°
  • Zone 2: Adjustable closing speed 180° - 15°
  • Zone 3: Adjustable latching 15° - 0°

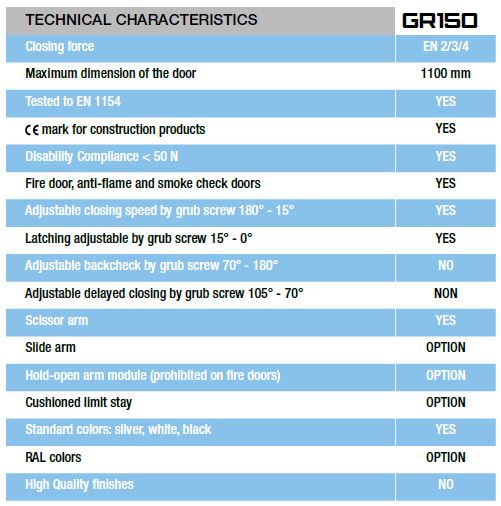

GROOM Door  closer GR150, with symmetrical rack and pinion technology and slide arm, compliance  with EN 1154, CE mark, disability compliance < 50 N.

  • Force  EN 2, 3 and 4 for doors up to 1100 mm width and / or 80 kg with an opening  angle up to 180°.
  • Closing  speed and latching adjustments by grub screw.

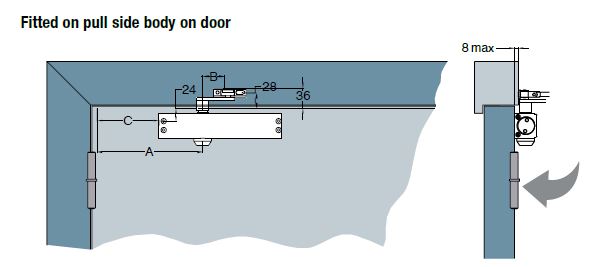

  • Reduced  body size and 16 mm mounting distance for metal profile mounting without DIN mounting  plate.
  • Invisible  body fixings hidden by its clipped cover.
  • Pull  or push side installation. Reversible, non-handed.
  • Thermostable  hydraulic from -20° to +40°, equipped with pressure relief valves.
  • Silver,  white, black, RAL finishes.
  • Accessories: support plates, hold-open arm  module, cushioned limit stay.
